PM-14S1SE - Premium Series - marantz
PM-14S1SE - Premium Series - marantz
Regular price
Rs. 374,900.00
Regular price
Sale price
Rs. 374,900.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

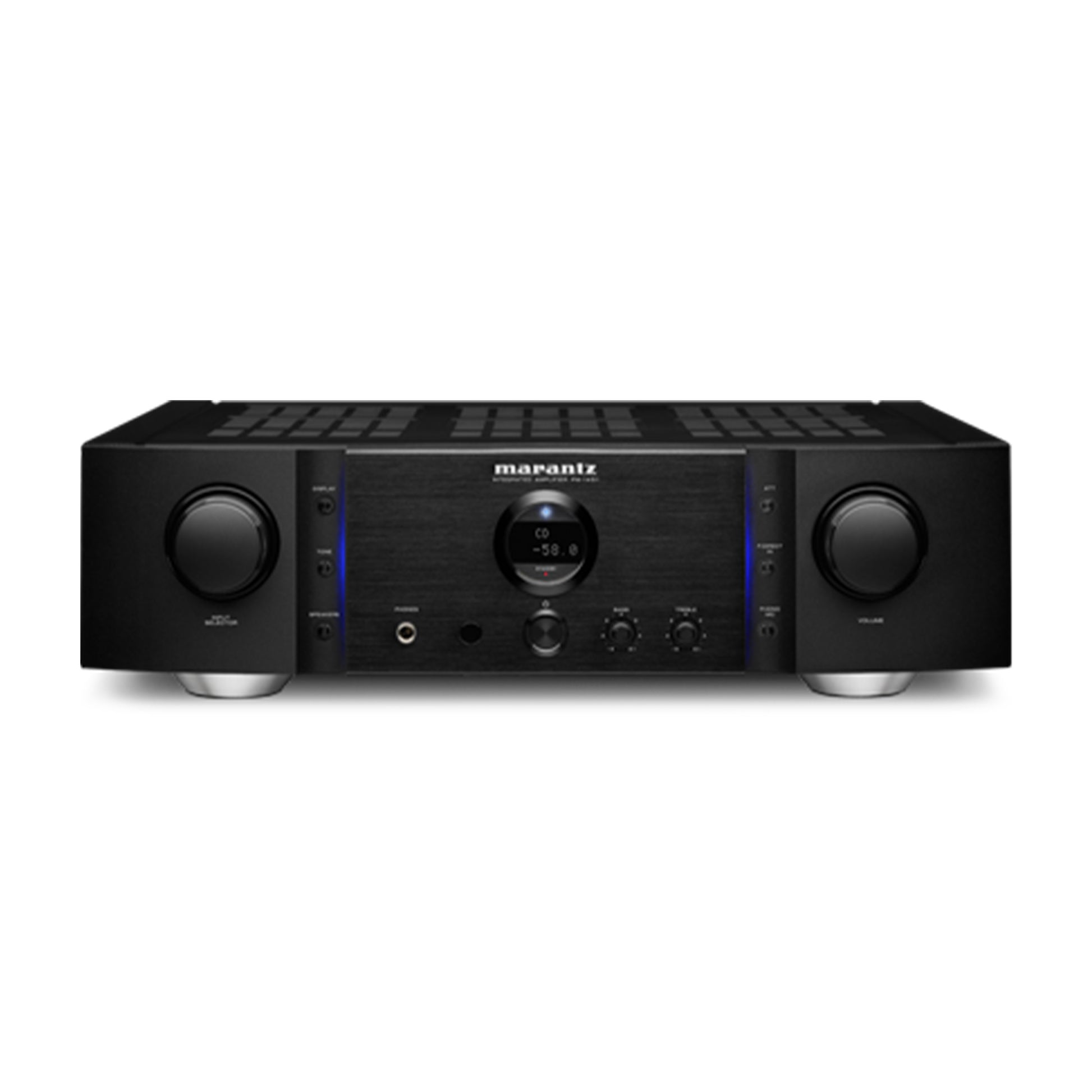

PM-14S1Reference Integrated Amplifier.The
amplifier is rated at 90 watts per channel
into 8 ohms and 140 watts per channel into 4
ohms
Technical Specifications
Features
| Channels | 2 |
| Current Feedback Topology | Yes |
| Phono EQ: Standard / Current Feedback / Constant Current Feedback | No / No / Yes |
| HDAM version | SA3, SA2 |
| Power Transformer: Toroidal / El | Yes / No |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetric PCB Layout | Yes |
| Aluminium extrusion heat sink | Yes |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
Others
| Linear Drive Power Supply | Yes |
| Liniear volume control | Yes |
| BI-AMP and Multichannel option | Yes |
| Shottky diodes | Yes |
| Input buffer amp (all inputs / CD only) | Yes / No |
| Separate Solid Heat Sinks | Yes |
| System block shielding: Copper / metal / none | No / Yes / No |
| Double Layer Bottom Plate | Yes |
| Low noise LCD display | Yes |
| Source Direct | Yes |
| Power Amp direct | Yes |
| Standby Mode | Yes |
Inputs/Outputs
| Audio Inputs | 6 |
| Phono Input: MM / MC | Yes / Yes |
| Audio Outputs | 2 |
| Pre-out / Main-in | 1 / No |
| Power Amp Direct IN | Yes |
| Gold Plated Cinch | Yes |
| Speaker Terminal: Screw / Marantz / WBT | No / Yes SPKT - 100 / No |
| Number of terminals | 2 |
| D-Bus | Yes |
| Floating Control Bus (3.5 mm mono jack x 2) | Yes |
| Headphone Out | Yes |
Specifications
| Power Output (8 / 4 Ohm RMS) | 90 W / 140 W |
| Frequency response | 5 Hz-100 kHz |
| Total Harmonic Distortion | 0.02% |
| Damping Factor | 100 |
| Input Sensitivity: MM | 2.7 mV / 47 kOhm |
| Input Sensitivity: MC | 270 |
| Signal to Noise Ratio: MM/MC | 86 / 75 dB |
| Input Sensitivity: High level | 240 mV / 20 kOhm |
| Signal to Noise Ratio: High level | 106 dB (2V input) |
| Input Sensitivity: Power Amp Direct IN | 1,7V / 20 kohm |
| Signal to Noise Ratio: Power Amp Direct IN | 125 dB |
General
| Available Colors: Gold / Silver / Black / Silver-Gold | Yes / No / Yes / No |
| Metal Front Panel | Yes |
| Power Consumption in W | 220 W |
| Standby Consumption in W | 0,2 W |
| Auto Power off | Yes |
| Detachable Power Cable | Yes |
| Remote Control | RC001PMSA |
| System Remote Function | Yes |
| Maximum Dimensions (W x D x H) in mm | 440 x 123 x 453 |
| Weight in kg | 18.5 |
